There are five basic steps in performing an edit on line.

1)Start Edits,
2)Make Changes,
3)Accept edits,
4)Test Edits, and
5) Assemble edits.

Although these steps seem very simple there are a few rules to watch out for.


  • You cannot expand or create a data table on line in the SLC, and you must be in program mode (or off line) to expand a data table on line in the PLC-5.
  • You cannot make an on line edit if the key switch is in Run Mode.
  • In the PLC-5, if backplane switch 8 is on, you cannot make an on line edit.
  • You do not need to perform an on line edit to directly change a value in the data table such as the preset of a timer or counter.
  • If the processor is in program mode, you do not need to test and assemble after accepting.
  • If the processor is in program mode, and a rung is deleted, there is no warning.


Let’s walk through the 5 step procedure: Look at the rung below.Our objective is to transfer control of the output to I:001/1.If you click on bit 0 and attempt to make a change, nothing happens. On line Ladder Program Editing



Step 1) Start Rung Edits

The first step is to put the rung into edit mode.There are several ways this can be done:
üDouble click the rung number
üRight click the rung number and start rung edits
üFrom ‘Edit’ on the menu bar, click rung edits, then start rung edits
üClick the start rung edit icon in the on line editing tool bar just above the ladder view

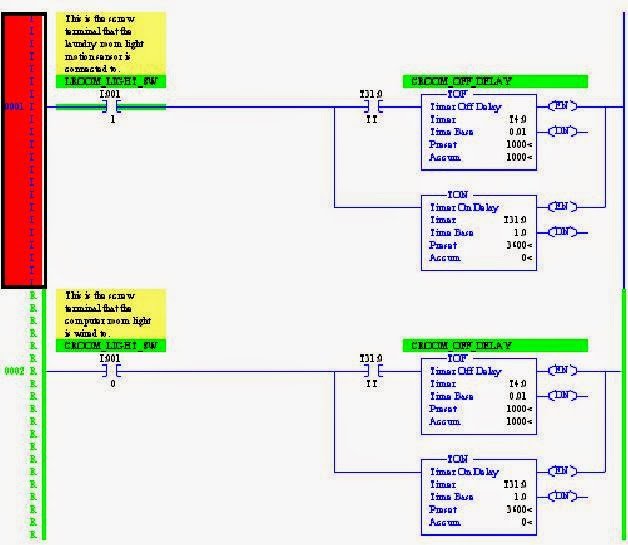

Notice that RSLogix made a copy of the rung for us to work with.By looking at the power rails, you can see the bottom rung is being executed by the processor, and the top rung is the one you need to make edits to.
You will also notice the e (edit) and r(replace) in the margin are lower case.This means the edits are not in the processor yet.If you are adding new logic instead of modifying existing logic, this is the step where you add a new rung.


Step 2) Make Changes

Now that the rung is in edit mode, changes can be made.If you were adding a new rung, you can now add the new logic to the rung.
Be careful not to add any logic that will fault the processor or cause damage to personnel or equipment.In the next step, the changes we make will be sent to the processor.
In this example, bit 0 is being changed to bit 1 on the input.If you are using an SLC, the addressing will be slightly different. On line Ladder Program Editing



Step 3) Accept Edits

Now that your rung is set up as you need it, it’s time to send the edits to the processor.
There are several ways to perform the next three steps.
üRight click the rung number, and accept edits
üClick Edit | Rung Edits | Accept rung from the menu bar
üClick the Accept Edits icon in the on line editing tool bar as shown below



If you need to accept multiple rung edits, you can hold down the CTRL key and click on the rungs you need to accept, or if you have many edits all together, you can click the first rung number, hold shift, then click the last rung number of the range you wish to accept.
Notice in the margin rung 1 is marked for insertion, and rung 2 is marked for removal. The I’s and R’s are capitol because the edits are now in the processor.Look at the power rails.You can see the old rung is still being executed by the processor.


Step 4) Test Edits

When you test edits, the new or modified rungs will become active.The old rungs will be left in the processor until we are sure our new rungs are working properly.
Be aware that if you change an output address, there might no longer be logic writing to that address.This means that you could abandon a bit in the ON state.
If you are modifying an input type address you should also be careful.If the rung was previously true, you may want to make sure your new logic is also going to be true at the moment you accept, or the the output may shut off. Also Check: Interfacing Rotary Encoder to Mitsubishi FX5U PLC

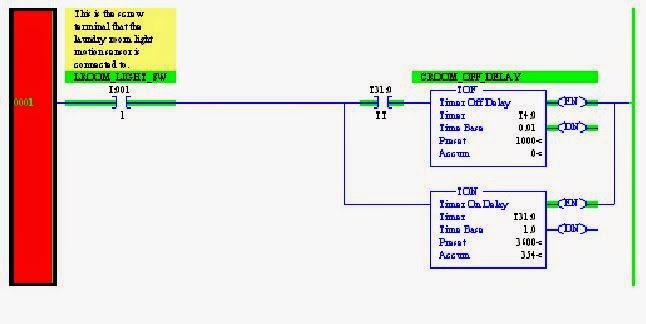

Let’s test the edits, and you will notice the new rung(s) are active.If the edits do not work the way you anticipated, you can untest to revert to the old rung while you make other changes to the new rung.


Notice the power rails:



Step 5) Assemble Edits

If you logic is working properly, go ahead and assemble the plc edits.Assembling removes the old rung, and the edit zone markers.After Assembling, you may want to save your work to the hard drive.



Noticec the Logic now appears to be normal:
